Technical parameter
- Magnetic field strength：6.2 MHz;
- Minimum Echo time：0.1 ms;
- Minimum vertical resolution: 1 cm;
- Stepping system control accuracy：0.5 mm;
- Maximum length of sample core：1 m;
- Maximum diameter of sample core：115mm.
Product features
On-site movable :Halbach structure of magnets greatly reduce the weight of the magnets by half, making them easier to move in complex terrain such as mountains and mining areas.
Automatic measurement of full diameter core: Based on the shortest TE, the inner diameter of the instrument probe is expanded to 145mm, which is convenient for various diameter ranges of core measurements. Combined with a high-precision stepper motor, fully automatic measurement of 1m core can be achieved.
Fast & Non-destructive: The cores can be reused, and the fully automatic measurement time of 1m cores is within within 18 minutes.
Short relaxation acquisition technique: Realize the breakthrough of full-diameter core microporous signal acquisition, and shortest TE of 0.2ms can be realized.
High vertical resolution acquisition technology: Outperforms international advanced products and successfully breaks through the resolution to 4cm.

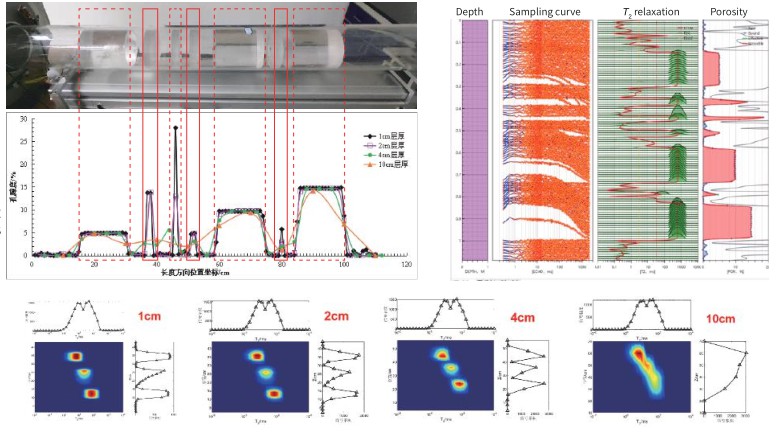

Application Cases
